Frames



  • A framed page is actually made up of multiple HTML pages. There is one HTML document that describes how to break up the single browser window into multiple windowpanes. Each windowpane is filled with an HTML document.
Frame Page Architecture
§  A <FRAMESET> element is placed in the html document before the <BODY> element. The <FRAMESET> describes the amount of screen real estate given to each windowpane by dividing the screen into ROWS or COLS.
§  The <FRAMESET> will then contain <FRAME> elements, one per division of the browser window.
§  Note: Because there is no BODY container, FRAMESET pages can't have background images and background colors associated with them.

Frame Page Architecture
<HTML>
<HEAD>
<TITLE> Framed Page </TITLE>
<FRAMeSET COLS=“23%,77%”>
<FRAME SRC=“Doc1.html”>
<FRAME SRC=“Doc2.html”>
</FRAMeSET >
</HEAD>
</HTML>

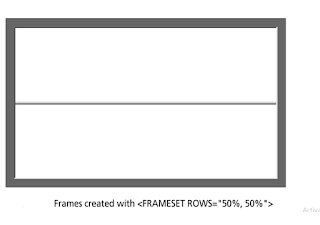

The Diagram below is a graphical view of the document described above


<FRAMESET> Container
<FRAMESET> : The FRAMESET element creates divisions in the browser window in a single direction. This allows you to define divisions as either rows or columns.
§  ROWS : Determines the size and number of rectangular rows within a <FRAMESET>. They are set from top of the display area to the bottom.
Possible values are:
§  Absolute pixel units, I.e. “360,120”.
§  A percentage of screen height, e.g. “75%,25%”.
§  Proportional values using the asterisk (*). This is often combined with a value in pixels , e.g. “360,*”.
§  <Frameset cols=“200,20%,*,2*”>

§  NORESIZE: Optional – prevents viewers from resizing the frame. By default the user can stretch or shrink the frame’s display by selecting the frame’s border and moving it up, down, left, or right.

<NOFRAMES>
  • <NOFRAMES>: Frame – capable browsers ignore all HTML within this tag including the contents of the BODY element. This element does not have any attributes.
<HTML>
<HEAD>
<TITLE> Framed Page </TITLE>
</HEAD>

<NOFRAMES>
<FRAMESET COLS="23%,77%">
<FRAME  SRC=""   NAME="left_pane“>
<FRAME  SRC=""   NAME="right_pane">
<NOFRAMES>
<P> This is a Framed Page. Upgrade your browser to support frames.</P>
</NOFRAMES></FRAMESET>

Compound FRAMESET Divisions
§  In this case a second FRAMESET element will be inserted in the place of the FRAME element that would describe the second row.
§  The second FRAMESET element will divide the remaining screen real estate into 2 columns.
§  This nested FRAMESET will then be followed by 2 FRAME elements to describe each of the subsequent frame divisions created.

Compound FRAMESET Divisions
<html>
<head>
<title> Compound Frames Page</title>
</head>
<frameset rows=“120,*”>
<frame src=“banner_file.html” name”banner”>
<frameset cols=“120,*”>
<frame src=“links_file.html” name=“links”>
<frame src=“content_file.html” name=“content”>

Compound FRAMESET Divisions
You may want to create a frames design with a combination of rows and columns.
Compound FRAMESET Divisions  Example
<HEAD>
<FRAMESET ROWS="25%,50%,25%”
  <FRAME SRC="">
<FRAMESET COLS="25%,*">
  <FRAME SRC="">
  <FRAME SRC="">
  </FRAMESET>
  <FRAME SRC="">
</FRAMESET>

</HEAD>
